Model Number: WDB74742

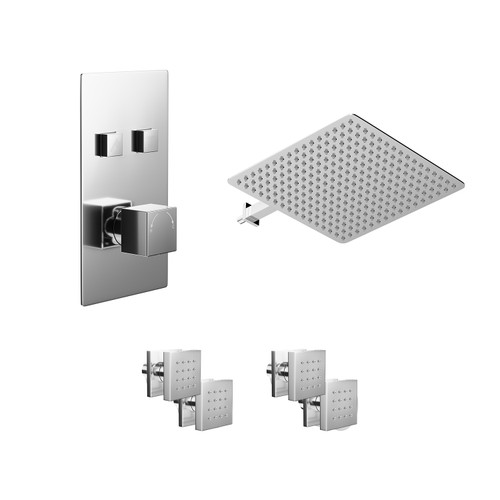

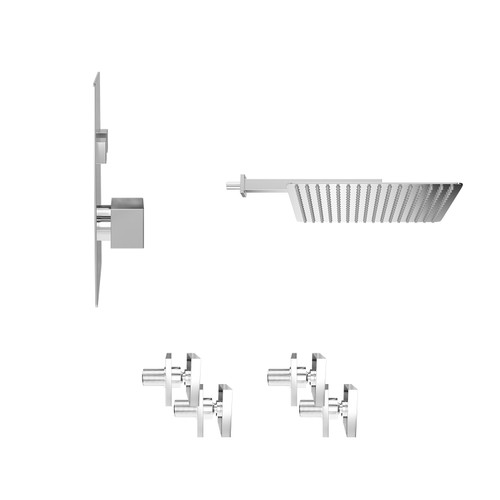

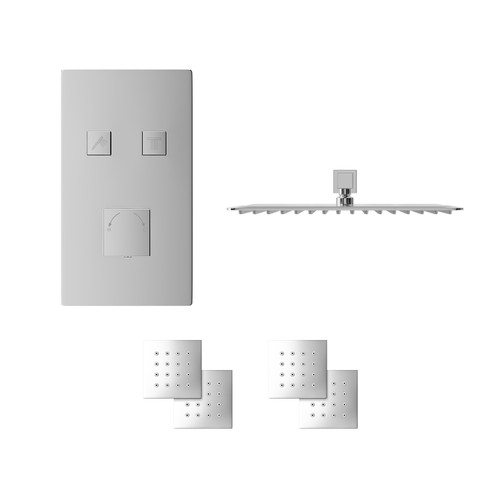

Transform your shower experience with the Cubix Polished Chrome Push Button Diverter Concealed Thermostatic Shower Valve. This stylish and modern solution combines a 400mm square shower head with an impressive wall arm and four body jets, ensuring a luxurious and refreshing shower every time. Designed for contemporary bathrooms, the Cubix range provides the perfect balance of functionality and aesthetics, making it an ideal choice for homeowners, designers, and contractors alike.
Featuring a sleek polished chrome finish, this shower valve not only looks stunning but is also built to last, thanks to its durable stainless steel construction. The concealed push button twin shower valve allows for easy switching between the shower head and body jets, offering you flexibility and control over your showering experience. With a single dial for temperature adjustment, achieving the perfect water temperature has never been simpler.
The generous 400mm square fixed shower head delivers an invigorating rain-like flow, while the 345mm wall arm provides a solid and reliable installation. Enhance your shower with the additional four polished chrome square body jets, which create a spa-like sensation, targeting specific areas for a truly rejuvenating wash. Designed for both high and low water pressure systems, this thermostatic mixer shower can operate effectively at pressures as low as 0.5 Bar, ensuring that everyone can enjoy its benefits.
Key Features:
- Polished chrome finish for a modern aesthetic
- 400mm square fixed shower head for an immersive experience
- Concealed push button twin shower valve for easy operation
- Four body jets for a spa-like shower experience
- Thermostatic control for consistent temperature
- Suitable for low and high-pressure systems

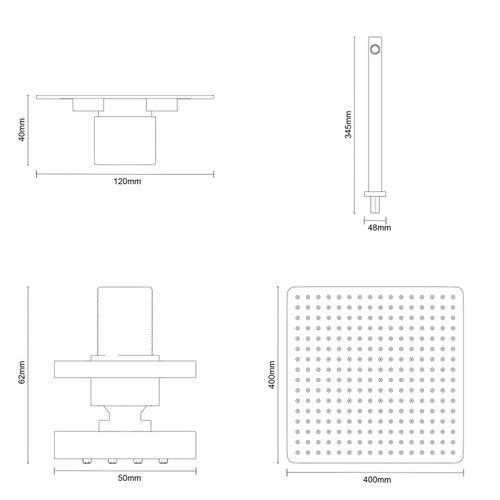

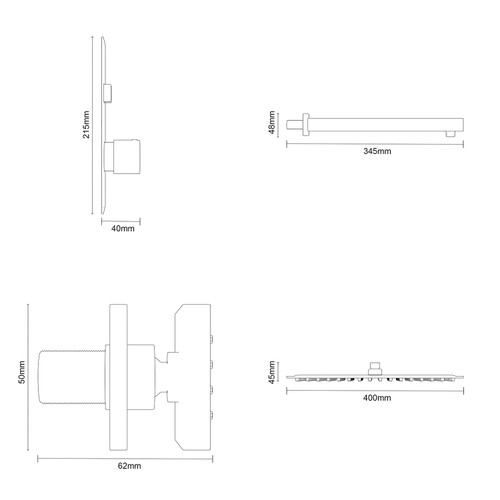

Comprising Of:
- Polished Chrome 400mm Thin Square Fixed Shower Head
W:400mm x H:7.5mm x D:54.5mm - Polished Chrome Concealed Push Button Twin Shower Valve - 2 Outlet
W:120mm x H:215mm x D:140mm - Polished Chrome 345mm Square Shower Arm
W:48mm x H:48mm x D:354mm - 4x Polished Chrome Square Body Shower Jet
W:50mm x H:50mm x D:62mm
| width | 400mm |
| height | 215mm |
| depth | 345mm |
| body jets | Yes |
| fittings supplied | Yes |
| item colour | Chrome |
| item depth | 345mm |
| item finish | Polished |
| item guarantee | 3 Years |
| item material | Stainless Steel |
| item mounting method | Sealant and Plumbing |
| item mounting type | Wall Mounted |
| item range | Cubix |
| item shape | Square |
| item style | Modern |
| item weight | 5.7kg |
| maximum flow rate litres | 24 |
| maximum pressure | 5 Bar |
| minimum flow rates litres | 3.5 |
| minimum pressure | 0.5 Bar |
| outlet position | Centre |
| packaged item height | 510mm |
| packaged item weight | 5.92kg |
| packaged item width | 160mm |
| recommended water pressure | 3 Bar |
| shower arm orientation | Horizontal |
| shower head shape | Square |
| shower head size | 400mm |
| shower pipe centres | 108mm |
| shower type | Thermostatic Mixer Shower |
| shower valve exposure | Concealed |
| shower valve lever shape | Square |
| shower valve outlet number | 2 Outlets |
| shower valve type | Twin |
| shower valve number of dials | 1 Dial |
