Model Number: WDB73401

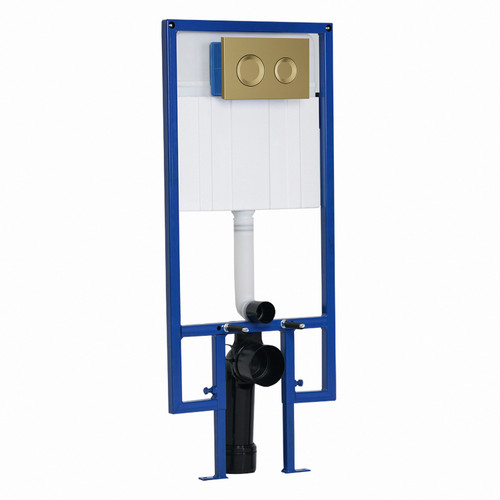

Introducing the Jesi Mechanical Low Height Concealed Cistern with Wall Frame and Colore Brushed Brass Dual Flush Plate with Round Buttons, a perfect blend of style and functionality for modern bathrooms. This innovative concealed cistern is designed to optimise space while delivering exceptional performance. Ideal for wall-hung toilets, it seamlessly integrates into your bathroom design, enhancing both aesthetics and practicality.
One of the standout features of this cistern is its low height, making it an excellent choice for smaller bathrooms or those requiring a more compact solution. The concealed cistern not only helps to create a streamlined look but also maximises the use of your bathroom's space, allowing for easier cleaning and a more minimalist appearance. With an adjustable flush volume, you can effortlessly choose between 3 or 6 litres, promoting water efficiency without compromising on performance.

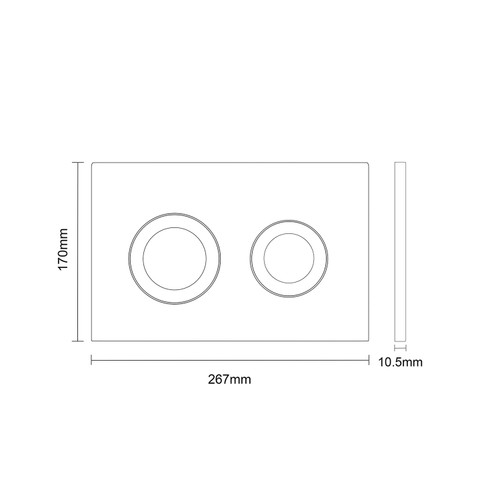

The stylish Colore Brushed Brass dual flush plate adds a touch of elegance, perfectly complementing modern decor. Its round buttons are not only visually appealing but also provide a tactile experience that enhances usability. Crafted from durable ABS material, the flush plate ensures longevity and resistance to wear, making it a smart choice for everyday use.

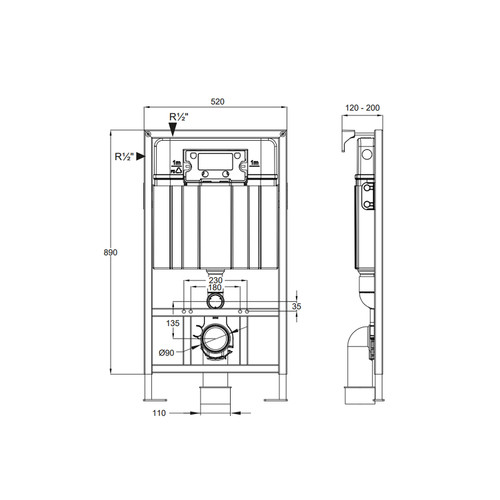

Installation is straightforward, thanks to the robust wall frame that supports up to 400kg, ensuring durability and stability. With a minimum installation depth of just 116mm, it can fit into a variety of wall constructions, making it a versatile choice for contractors and designers alike.
Engineered for reliability, this cistern features a cistern flow rate of 2.2 litres per second, ensuring efficient flushing with every use. The cistern capacity is adjustable between 1.5/3 litres and 2.5/6 litres, giving you the flexibility to set it according to your specific requirements.
Key Features:
- Low height design for compact spaces
- Dual flush functionality for water efficiency
- Colore Brushed Brass flush plate for a modern aesthetic
- Robust wall frame with a load capacity of 400kg
- Adjustable cistern capacity from 1.5/3 litres to 2.5/6 litres
| width | 520mm |
| height | 890mm |
| depth | 204mm |
| cistern capacity | Adjustable 1.5/3 Litres - 2.5/6 Litres |
| cistern feed entry location | Top |
| cistern type | Concealed |
| dual flush | Yes |
| flush plate material | ABS |
| flush type | Push Button |
| flush volume | 3/6 Litres |
| frame installation depth | 116mm Min |
| frame load capacity | 400kg |
| item colour | Brushed Brass |
| item depth | 204mm |
| item finish | Satin |
| item guarantee | 2 Years |
| item material | Plastic |
| item mounting method | Brackets and Plumbing |
| item mounting type | Wall Mounted |
| item range | Jesi |
| item shape | Round |
| item style | Modern |
| item weight | 10.96kg |
| packaged item height | 1045mm |
| packaged item weight | 11.92kg |
| packaged item width | 535mm |
| toilet type compatibility | Wall Hung |
