Model Number: WDB77500

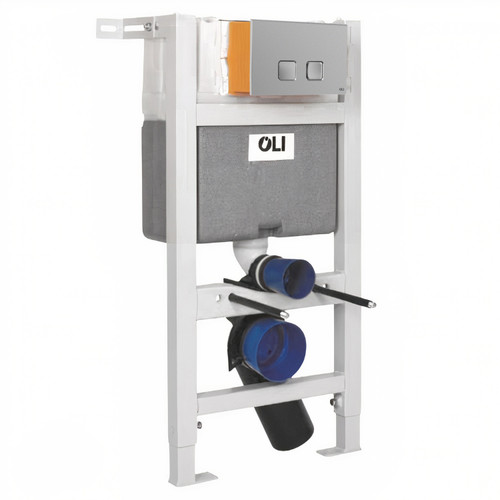

The OLI Expert Plus Mechanical Low Height Concealed Cistern with Wall Frame and Basal Satin Chrome Dual Flush Plate with Square Buttons is a modern solution for any contemporary bathroom. Designed with both style and functionality in mind, this cistern seamlessly integrates into your space, providing a clean and minimalist aesthetic. Its low height design makes it perfect for compact bathrooms, while its robust build ensures long-lasting performance.
This concealed cistern features a dual flush system, offering two flush volumes of 3 and 6 litres, which aids in water conservation without compromising performance. The innovative flushing mechanism is not only effective but also enhances the overall user experience. With a cistern capacity of 7 litres, this model efficiently manages waste disposal, making it an ideal choice for both residential and commercial applications.
The OLI Expert Plus comes complete with a wall frame that supports a maximum load capacity of 400 kg, ensuring durability and stability for back-to-wall and wall-hung toilet types. The flush plate, crafted from high-quality ABS in a sleek satin chrome finish, adds a touch of elegance and is designed with square buttons for ease of use. This thoughtful design choice not only contributes to the cistern’s modern look but also offers a tactile experience when operating the flush.

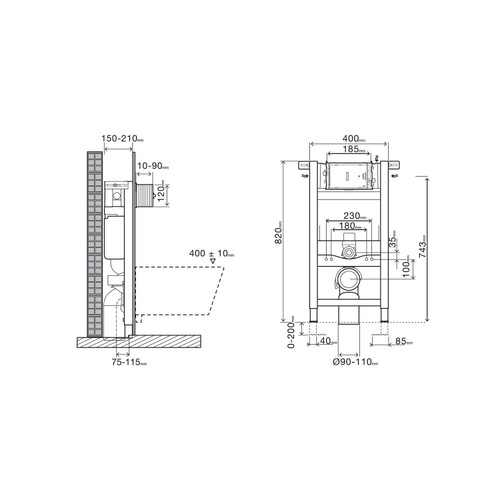

Installation is straightforward with supplied fittings, and the adjustable frame height ranges from 820mm to 970mm, allowing for flexibility depending on your bathroom layout. Additionally, the cistern's flow rate of 2.0 - 2.1 litres per second ensures efficient water supply, while the side and top feed entry locations provide versatile plumbing options.
Key Features:
- Dual flush system for water efficiency
- Concealed cistern with low height design

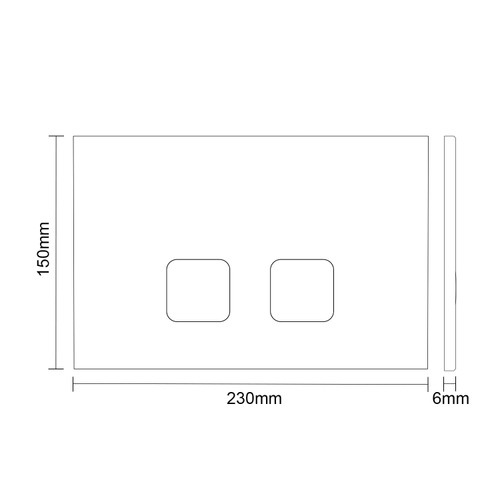

- Satin chrome flush plate with square buttons
- Adjustable frame height from 820mm to 970mm
- Robust wall frame with a load capacity of 400kg
- Compatible with back-to-wall and wall-hung toilets
- Includes all necessary fittings for installation
| width | 400mm |
| height | 820mm |
| depth | 150mm |
| cistern feed entry location | Side & Top |
| fittings supplied | Yes |
| cistern flow rate | 2.0 - 2.1 Litres per Second |
| flush plate material | ABS |
| dual flush | Yes |
| cistern capacity | 7 Litres |
| cistern type | Fixing Frame with Cistern |
| flush volume | 3/6 Litres |
| flush type | Push Button |
| frame installation depth | 150mm - 200mm |
| frame height adjustment | 820mm-970mm |
| frame load capacity | 400kg |
| item collection | Expert Plus |
| item colour | Satin Chrome |
| item finish | Satin |
| item depth | 150mm |
| item material | Plastic |
| item mounting method | Brackets and Plumbing |
| item mounting type | Wall Mounted |
| item shape | Square |
| item weight | 10.88kg |
| item style | Modern |
| item guarantee | 2 Years |
| packaged item height | 190mm |
| packaged item weight | 1.58kg |
| packaged item width | 845mm |
| toilet type compatibility | Back to Wall & Wall Hung |
