Key Features
-
Wall Frame Included
Supports a wall hung toilet
-
Concealed Design
The cistern hides behind the wall
-
Dual Flush
Choose 3 or 6 litres
-
For Back to Wall & Wall Hung Toilets
Designed for back to wall & wall hung toilets
-
Side & Top Feed Entry
For straightforward plumbing
-
10 Year Guarantee
Reliable cover for extra peace of mind
Description
Complete your toilet installation with the OLI Expert Plus Mechanical Low Height Concealed Cistern with Wall Frame and Top/Front Dual Flush, a reliable concealed cistern built for everyday use. Concealed behind the wall or furniture, it keeps the cistern out of sight for a clean, minimal look. It's a smart choice for modern bathrooms where you want the space to feel clear and uncluttered.
It comes with a wall frame, ready to support a wall hung toilet and leave the floor clear for easy cleaning. A dual flush lets you choose 3 or 6 litres, helping you save water every day. Choosing a quality cistern helps keep your toilet working smoothly for years.

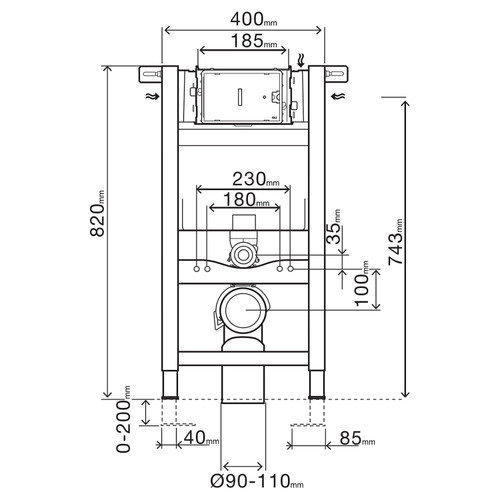

It measures 400mm wide, 820mm high and 150mm deep, and is made from plastic. The installation depth is 150mm - 200mm. The water feed enters from the side & top, keeping plumbing simple. It's designed for back to wall & wall hung toilets.
It's installed with brackets and plumbing, and the fittings are included. It's designed with installers in mind, so fitting is straightforward and dependable. Backed by a 10 year guarantee, it's a great-value way to upgrade your toilet with confidence.
Specifications
| width | 400mm |
| height | 820mm |
| depth | 150mm |
| cistern feed entry location | Side & Top |
| cistern type | Fixing Frame with Cistern |
| cistern capacity | 7 Litres |
| dual flush | Yes |
| fittings supplied | Yes |
| flush plate material | ABS |
| flush type | Push Button |
| frame installation depth | 150mm - 200mm |
| flush volume | 3/6 Litres |
| frame load capacity | 400 Kg |
| frame height adjustment | 820mm-970mm |
| item depth | 150mm |
| item colour | White |
| item guarantee | 10 Years |
| item mounting type | Wall Mounted |
| item mounting method | Brackets and Plumbing |
| item material | Plastic |
| item shape | Square |
| item style | Modern |
| packaged item weight | 1.08kg |
| item weight | 10.62kg |
| packaged item width | 845mm |
| packaged item height | 191mm |
| toilet type compatibility | Back to Wall & Wall Hung |
| item range | Expert Plus |
OLI Expert Plus Mechanical Low Height Concealed Cistern with Wall Frame and Top/Front Dual Flush
SKU: WDB13309
