Model Number: WDB74665

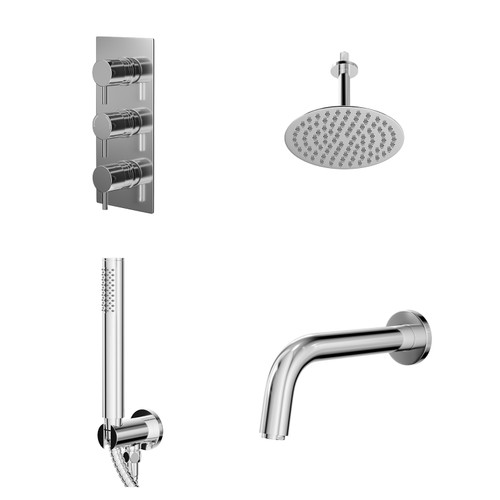

It’s time to build a shower enclosure that’s energy efficient, comfortable, and reliable. Introducing our Polished Chrome Concealed Triple Thermostatic Shower Valve with Diverter and 400mm Round Head with 150mm Ceiling Arm and Clyde Slide Rail Kit with Bath Spout - 3 Outlet for your bathroom.
With our shower system kit there is no need to buy components separately, instead, you can enjoy all the practicalities of a reliable shower system along with simple installation. Thanks to a triple diverter, you can install a round shower head, mobile shower handset, along with a bath filler tap. Please note, you need a minimum 0.5 bar pressure.
When it comes to your shower system, style is as important as functionality, which is why we strive for the finest finishes. Our polished chrome shower components reflect your bathroom decoration effortlessly creating a dynamic and complementary atmosphere in the space. Upgrade with us now.
Key features
Valve
- Thermostatically controlled
- Made from rust resistant brass
- Minimum 0.5 bar pressure
- Stylish chrome finish
- Needs 90mm - 100mm behind wall for fittings
- Fittings not included
Shower Head
- Made from durable stainless steel
- Lightweight for easy installation
- Strong pressure resistance
- Modern thin round design
- High resistance to calcium build up
- Fixed Head and Ceiling Arm
- Comes complete with swivel to allow shower head adjustment
- Fittings not included
Slide Rail Kit
- Made from rust resistant brass
- Lightweight for easy installation
- Strong pressure resistance
- Striking polished chrome finish
- Modern round design handset
- Height adjustable slider rail
- Shower hose and wall outlet
- Fittings not included
Bath Spout
- Made from rust resistant brass
- Polished chrome finish
- Cohesive round design
- Modern wall mounted fitting
- Fittings not included
Comprising of:
- Polished Chrome Round Vertical Shower Arm
W:60mm x D:60mm x H:150mm - Polished Chrome Round Shower Outlet Holder and Kit
W:32mm x D:66.5mm x H:244mm - Polished Chrome Round Bath Spout
W:60mm x D:251mm x H:110mm - Polished Chrome Thin Round Fixed Shower Head
W:400mm x D:47mm x H:6mm - Polished Chrome Concealed Triple Thermostatic Shower Valve with Diverter - 3 Outlets
W:120mm x D:140mm x H:265mm
width | 400mm |
height | 775mm |
depth | 251mm |
fittings supplied | No |
item colour | Chrome |
item depth | 251mm |
item finish | Polished |
item guarantee | 3 Years |
item material | Metal |
item mounting method | Sealant and Plumbing |
item mounting type | Wall & Ceiling |
item range | Circo |
item shape | Round |
item style | Modern |
item weight | 4.9kg |
maximum flow rate litres | 25.5 |
maximum pressure | 5 Bar |
minimum flow rates litres | 7.8 |
minimum pressure | 0.5 Bar |
outlet position | Side |
packaged item height | 620mm |
packaged item weight | 5.48kg |
packaged item width | 260mm |
recommended water pressure | 3 Bar |
shower arm orientation | Vertical |
shower head shape | Round |
shower head size | 400mm |
shower pipe centres | 80mm |
shower type | Mixer Shower |
shower valve exposure | Concealed |
shower valve lever shape | Round |
shower valve number of dials | 3 Dials |
shower valve outlet number | 3 Outlets |
shower valve type | Triple |
