Key Features
-
Polished Chrome Finish
Gleaming chrome with a clean, classic shine
-
Push Button Controls
Quick, simple control at the press of a button
-
Concealed Valve
The valve hides behind the wall for a clean, minimal look
-
400mm Fixed Head
A generous overhead spray for a relaxing shower
-
Slide Rail Kit
Adjust the handset height to suit everyone
-
3 Year Guarantee
Reliable cover for extra peace of mind
Description

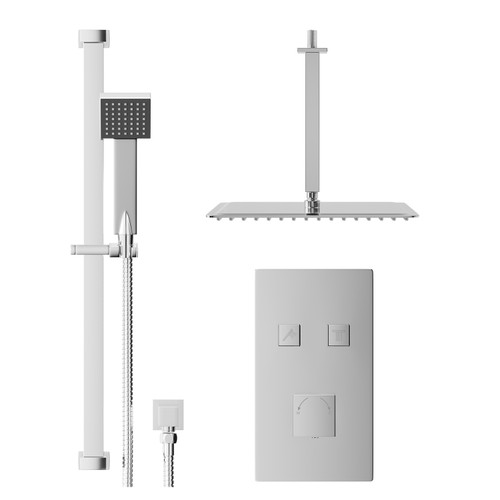

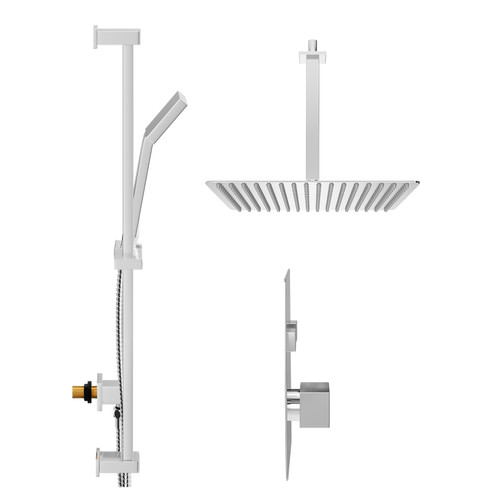

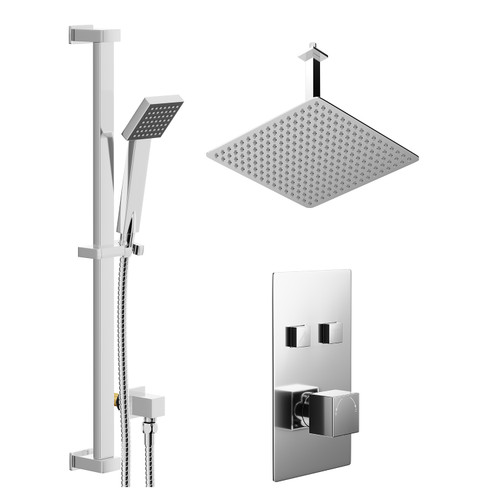

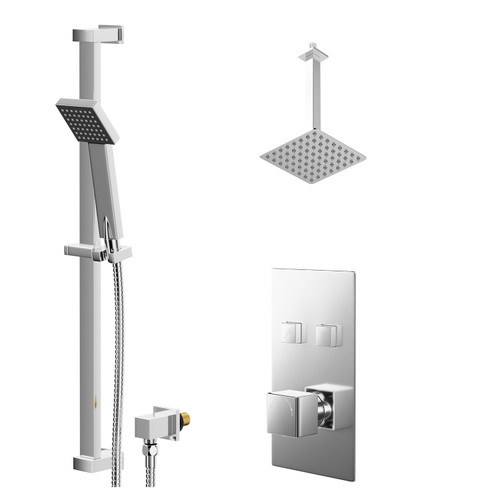

Upgrade your shower with the Cubix Polished Chrome Concealed Push Button Twin Shower Valve and 400mm Thin Square Fixed Head with 300mm Ceiling Arm and Thames Slide Rail Kit with Square Elbow - 2 Outlet, a shower set that's finished in gleaming chrome with a clean, classic shine. With the workings hidden away, the wall stays clean and easy to tile around. The valve is concealed behind the wall, keeping the look clean and uncluttered.
Push-button controls make it quick and simple to turn the water on and off and switch between outlets. It supplies two outlets, so you can enjoy more than one way to shower. Everything comes together in one set: a 400mm thin square fixed shower head, a shower slide rail kit, a square shower elbow and a 300mm square vertical shower arm.

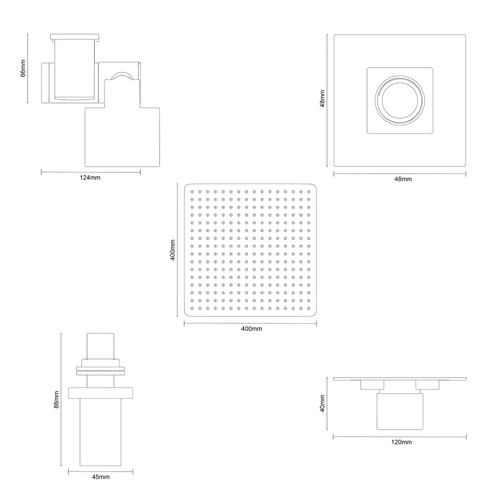

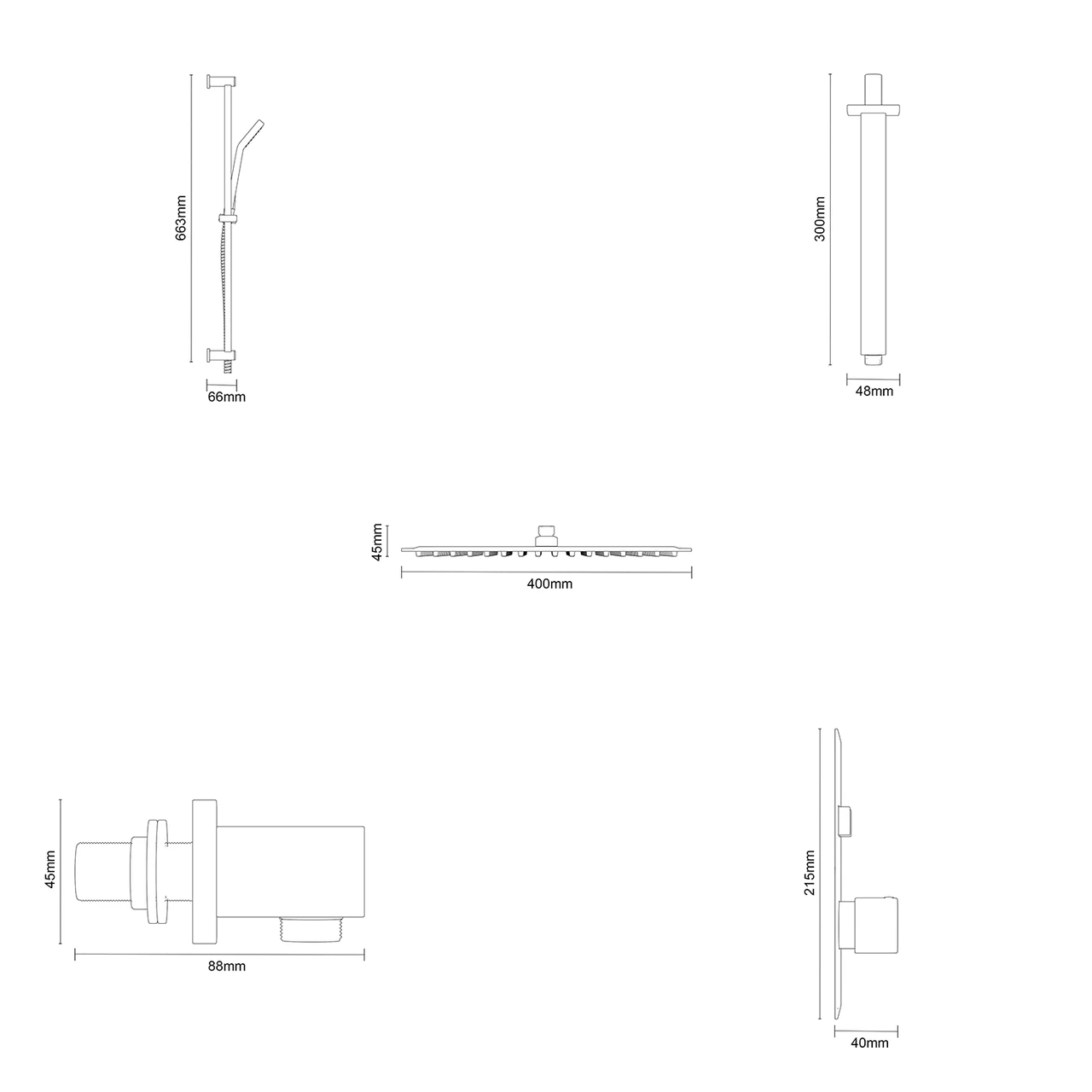

The handset comes with a 1500mm hose. The valve measures 120mm wide, 215mm high and 140mm deep. It's made from stainless steel. Pipe centres are 108mm.
It's wall and ceiling mounted and installed with sealant and plumbing connections. It works with water pressures from 0.5 bar to 5 bar, with 3 bar recommended for the best performance. Fittings are included.
It's designed to make everyday showers more enjoyable. Backed by a 3 year guarantee, it's a confident, great-value upgrade for your bathroom.
Specifications
| width | 400mm |
| height | 663mm |
| depth | 88mm |
| fittings supplied | Yes |
| item colour | Chrome |
| item depth | 88mm |
| item finish | Polished |
| item guarantee | 3 Years |
| item material | Stainless Steel |
| item mounting method | Sealant and Plumbing |
| item mounting type | Wall & Ceiling Mounted |
| item range | Cubix |
| item shape | Square |
| item style | Modern |
| item weight | 7.5kg |
| maximum flow rate litres | 24 |
| maximum pressure | 5 Bar |
| minimum flow rates litres | 3.5 |
| minimum pressure | 0.5 Bar |
| outlet position | Centre |
| packaged item height | 220mm |
| packaged item weight | 7.99kg |
| packaged item width | 160mm |
| recommended water pressure | 3 Bar |
| riser rail type | Adjustable |
| shower arm orientation | Vertical |
| shower connection inlet | G 1/2" |
| shower handset | Yes |
| shower head modes | 1 |
| shower head shape | Square |
| shower head size | 400mm |
| shower hose length | 1.5m |
| shower pipe centres | 108mm |
| shower type | Thermostatic Mixer Shower |
| shower valve exposure | Concealed |
| shower valve lever shape | Square |
| shower valve outlet number | 2 Outlets |
| shower valve type | Twin |
| shower valve number of dials | 1 Dial |
Cubix Polished Chrome Concealed Push Button Twin Shower Valve and 400mm Thin Square Fixed Head with 300mm Ceiling Arm and Thames Slide Rail Kit with Square Elbow - 2 Outlet
SKU: WDB74912
