Key features
- Minimalist sleek design with matt black finish
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The patented cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
Product Notes:
During installation extra care must be taken to avoid damaging the fittings. The Manufacturer provides a 3 Year Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.

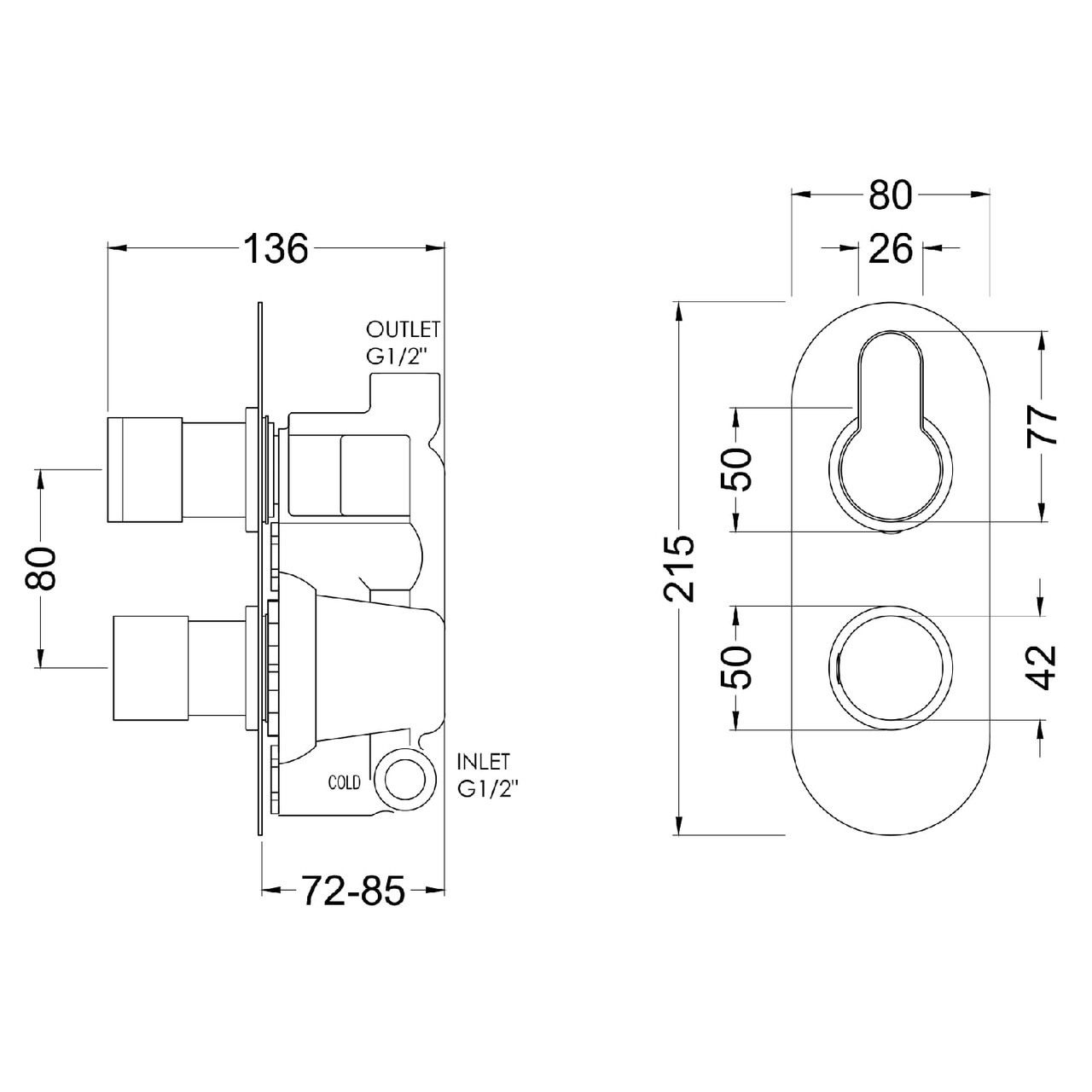

width | 80mm |
height | 215mm |
depth | 136mm |
item depth | 136mm |
item material | Metal & Plastic |
item mounting type | Wall |
item finish | Matt |
item colour | Matt Black |
item guarantee | 3 Year |
item range | Arvan |
item shape | Round |
item style | Modern |
maximum flow rate litres | 44 |
item weight | 2.57kg |
minimum pressure | 0.1 Bar |
maximum pressure | 5 Bar |
minimum flow rates litres | 5.5 |
outlet position | Top |
number of valve dials | 2 Dials |
recommended water pressure | 0.1 Bar |
shower valve lever shape | Lever |
shower valve outlet number | 1 Outlet |
packaged item width | 240mm |
packaged item height | 110mm |
packaged item weight | 2.57kg |
shower valve exposure | Concealed |
shower valve type | Twin Valve |
item mounting method | Sealant and Plumbing |
shower valve number of dials | 2 Dials |
