Key Features
-
Gloss White Finish
Clean white that keeps the look light and fresh
-
Vitreous China Build
Hard-wearing vitreous china that's easy to keep clean
-
1 Tap Hole
Ready for a mono basin mixer
-
Built-In Overflow
Helps prevent spills if the basin is overfilled
-
Rimless Pan
No hidden rim, so cleaning is quicker and more hygienic
-
5 Year Guarantee
Reliable cover for extra peace of mind
Description
The Elvas 470mm Wall Hung Basin and Toilet Suite including Square Polished Chrome Bottle Trap and Closed Back Toilet brings a matching basin and toilet together for a clean, consistent look that's simple to plan around. Everything is made from vitreous china in gloss white. It's a great choice for smaller bathrooms and cloakrooms where floor space matters. A single tap hole suits a mono basin mixer, sold separately.
A built-in overflow helps prevent spills if the basin is overfilled. It takes a slotted waste, sold separately. Its rimless pan has no hidden rim for germs to hide under, so it's quicker and easier to keep clean. The pan sits at a height of 400mm.

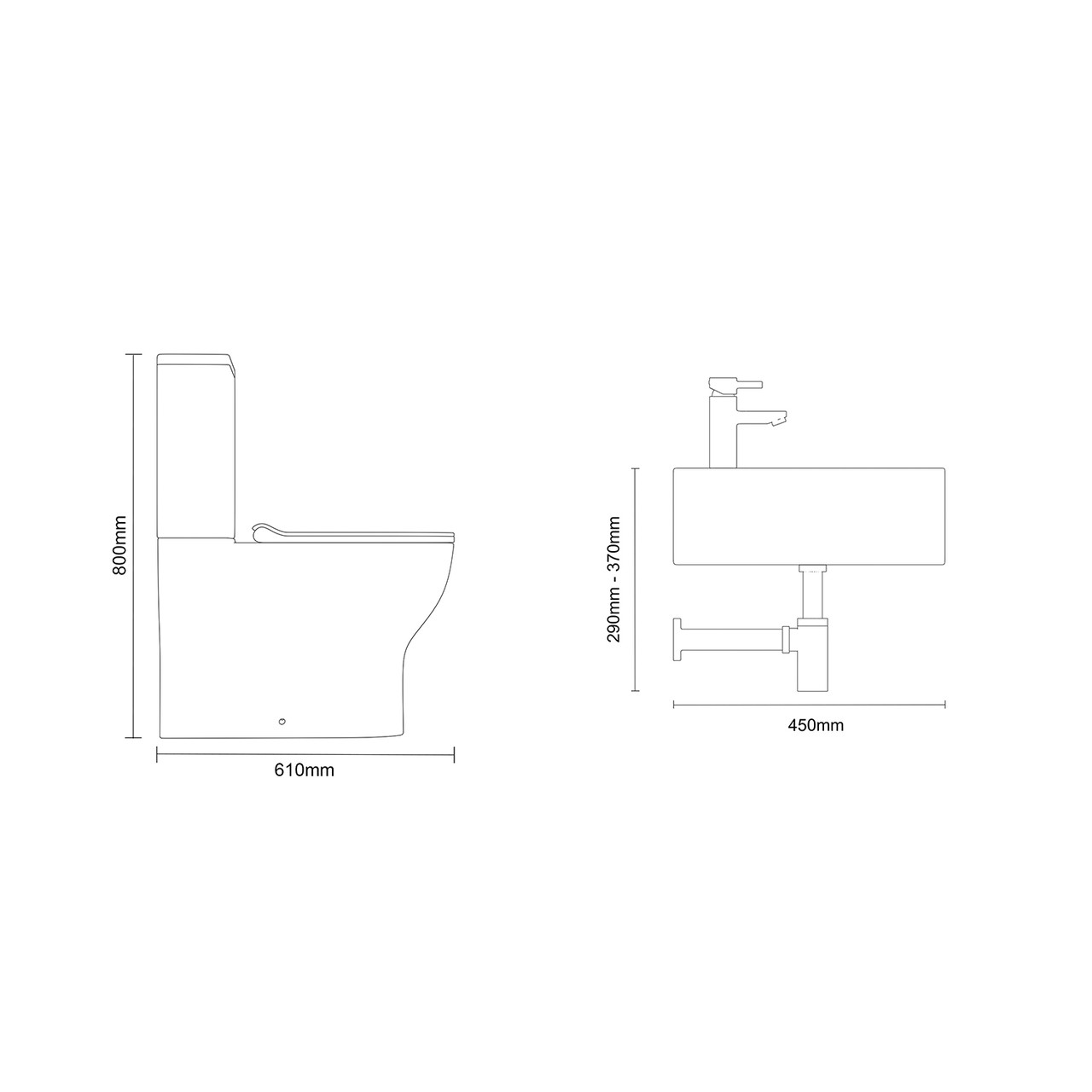

A dual flush push button flush uses 3 or 6 litres, so you can save water on lighter flushes. The d-shape soft close seat is included. In the box you'll find a freya rimless flush to wall close coupled toilet with soft close toilet seat - NCG650 (374mm wide x 790mm high x 610mm deep) and a 470mm x 450mm square countertop basin with 1 tap hole (470mm wide x 160mm high x 450mm deep). It comes with a square polished chrome bottle trap.
The projection from the wall is 610mm. It has a P trap outlet. The soil pipe centre is 180mm from the wall. The seat uses top fixing hinges.
It's wall and floor mounted and the fittings are included. A countertop basin is an easy way to add designer style to a vanity unit or washstand. It gives you plenty of freedom to choose a tap that suits your style. With a 5 year guarantee behind it, you can enjoy it with real peace of mind.
Specifications
| width | 470mm |
| depth | 612mm |
| basin tap holes | 1 Tap Hole |
| basin tap location | Basin Centre |
| basin overflow | Yes |
| basin waste type required | Slotted Waste |
| basin taps supplied | No |
| fittings supplied | Yes |
| flush plate material | ABS Polished Chrome |
| compatible basin tap type | Mono Basin Mixer Tap |
| dual flush | Yes |
| flush type | Push Button |
| cistern type | Concealed |
| basin type | Wall Hung Basin |
| flush volume | 3/6 Litres |
| item depth | 612mm |
| item finish | Gloss |
| item guarantee | 5 Years |
| item colour | White |
| item material | Vitreous China |
| item range | Elvas |
| item shape | Square |
| item weight | 64.12kg |
| item style | Modern |
| packaged item height | 495mm |
| number of vessels | 1 Basin |
| packaged item weight | 68.32kg |
| seat hinge hole centres | 148mm |
| soft close | Yes |
| toilet pan height | 400mm |
| item mounting type | Wall & Floor Mounted |
| toilet pan rimless | Yes |
| soil pipe centre | 180mm |
| toilet seat included | Yes |
| toilet type compatibility | Back to Wall |
| top or bottom fix | Top Fixing |
| vessel sub type | Toilet Suite Basin |
| toilet seat type | D-Shape |
| toilet pan type | Flush to Wall |
| toilet pan trap type | P Trap |
| packaged item width | 765mm |
| assembly required | No |
Elvas 470mm Wall Hung Basin and Toilet Suite including Square Polished Chrome Bottle Trap and Closed Back Toilet
SKU: WDB91727
